Robotic Crawler

Customize your own application

The CLIIN Robot is a versatile magnetic universal crawler (MUC) suitable for an endless number of applications.
The robot is no larger than a regular check-in suitcase and equipped with strong magnets to ensure adhesion and a tooling plate for attaching any sort of tool or gear on top.

The robot is ideal for industrial cleaning and inspection jobs which require working at heights, and with your own customized tools, the robot can simplify jobs across industries. It will make it easier to access hard-to-reach areas and can improve safety and reduce manpower.

Depending on the operational context, companies can anticipate a return on investment (ROI) in less than a year.

View brochure

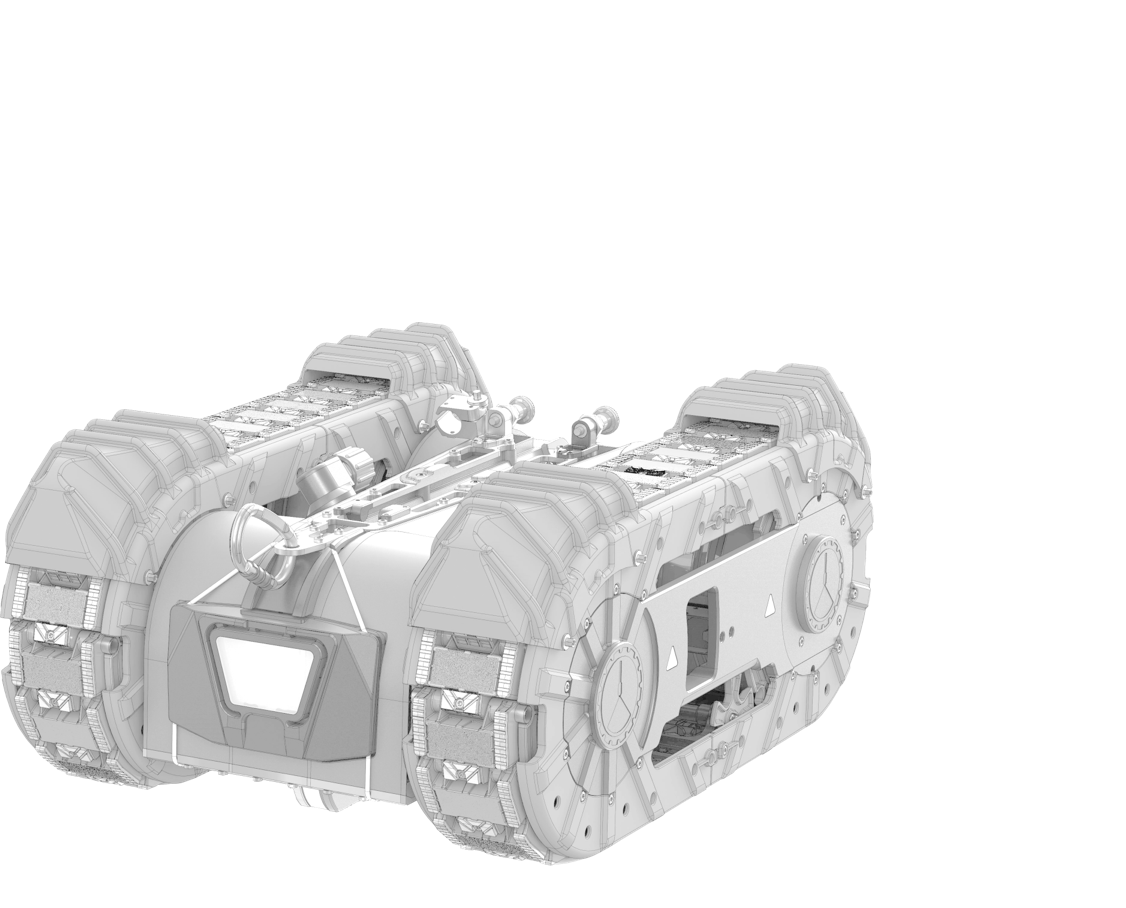

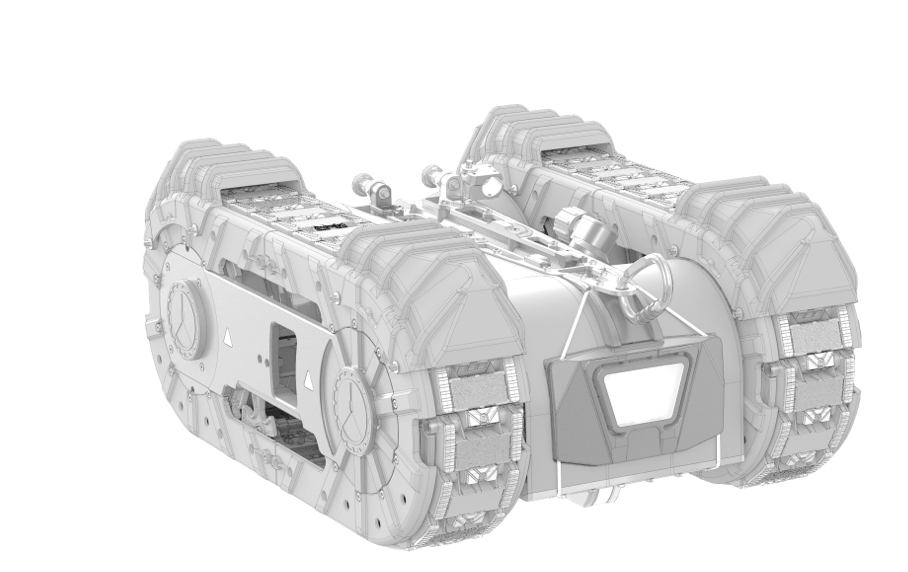

3D model of the robot and its applications

Your application

Submit an inquiry

Home Robots Robotic Crawler

Technical Data

Cleaning Capacity: Covers 500-800 m2/h.

Weight: 89 kg.

Dimensions: L747 mm x W562 mm x H310 mm.

Power Requirements: Operates on 100-240 V, 13 A+ at 50-60 Hz with a High-Pressure System.

Pressure Resistance: Successfully passed submersion tests up to 60 meters in repeated cycles, crash testing at depths exceeding 100 meters, and IP69K high-pressure steam washing.

Submersible Endurance: Proven reliability with over 4,000 hours of continuous underwater operation.

Vertical Lifting Capacity: Capable of lifting up to 250 kg vertically.

Impressive Torque: Boasts a peak torque of +1,800 Nm, surpassing that of modern electric cars.

Durable Construction: Crafted in Denmark from advanced, non-corrosive materials including duplex stainless steel, titanium, carbon glass, reinforced polymers, ensuring long-lasting performance and resistance to chemicals.

Impact Testing: Achieved IK10 rating. Tested with a 1000 g mass dropped from 400 mm onto light-transmitting parts, and from 700 mm onto connectors.

Extreme Temperatures: The robot was tested for 672 hours at 80°C and for 24 hours at -25°C.

Example applications

Wind Turbines

The ROV can efficiently clean the inside and outside of wind turbines. with proper inspection equipments it can be used to inspect the blades.

Welding

Use the ROV for welding jobs in large constructions and areas which are difficult to access.

Mining

Make cleaning and risky mining jobs easier and access narrow areas with the ROV.

Painting

Make painting of ships, wind turbines, tanks, and other industrail painting jobs systematic and simple with the ROV.

About CLIIN

CLIIN is a Danish company specialising in making robots for the shipping industry with the purpose of optimising the cleaning process in terms of time, cost, and strain on the environment.
